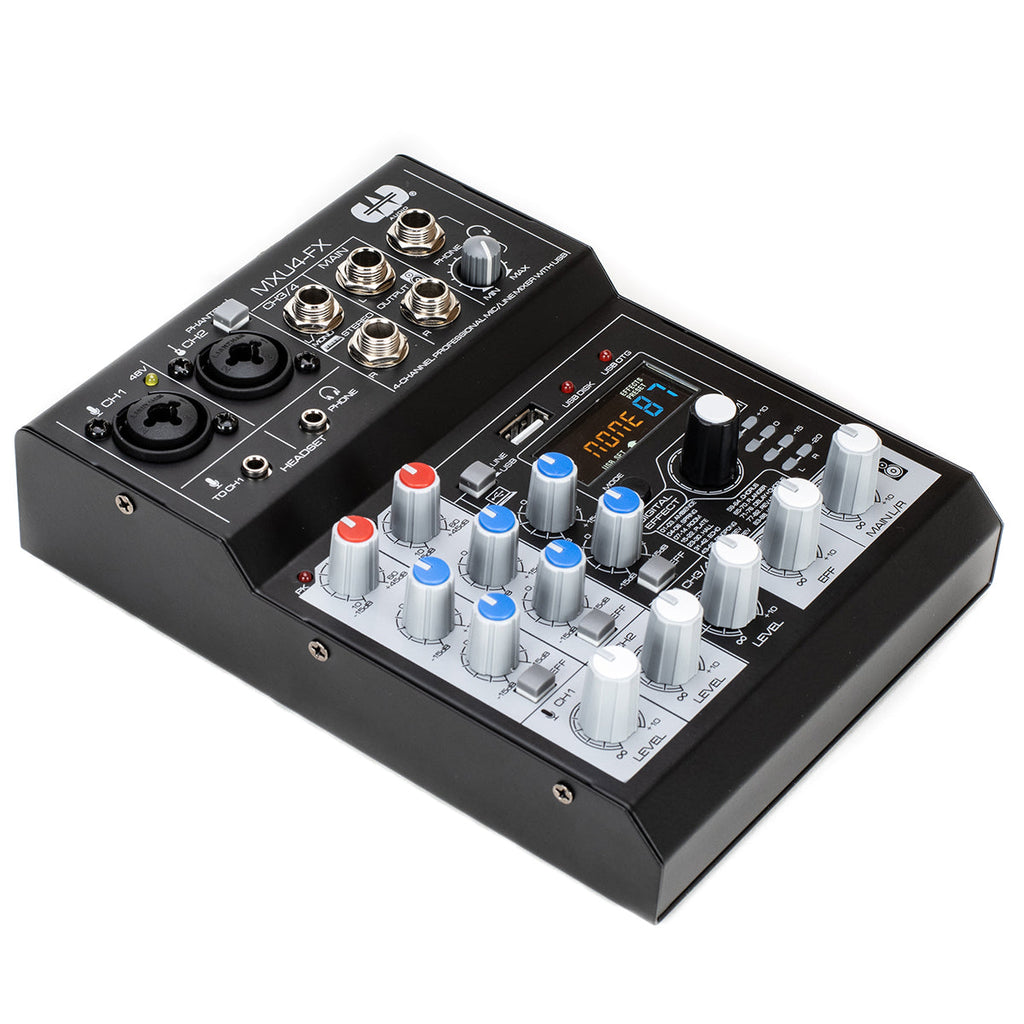

CAD 4 Channel Mixer with USB Interface & Digital Effects



The MXU4FX, a 4 Channel Mixer with USB Interface, and Digital Effects. The MXU4FX is a multipurpose 4 channel (2mic/line, 2 mono/1 stereo line) analog mixer with a built-in USB interface and digital effects processor. On-board 2-band EQ and +48V phantom power make it an ideal compact option for live performance, broadcasting, podcasting, or home recording.

The MXU4FX features include the following:
· USB output connects to computer for easy recording or podcasting
· USB input for playing MP3/WAV files from a flash drive
· +48V phantom power for use with condenser microphones
· 2-band EQ per channel

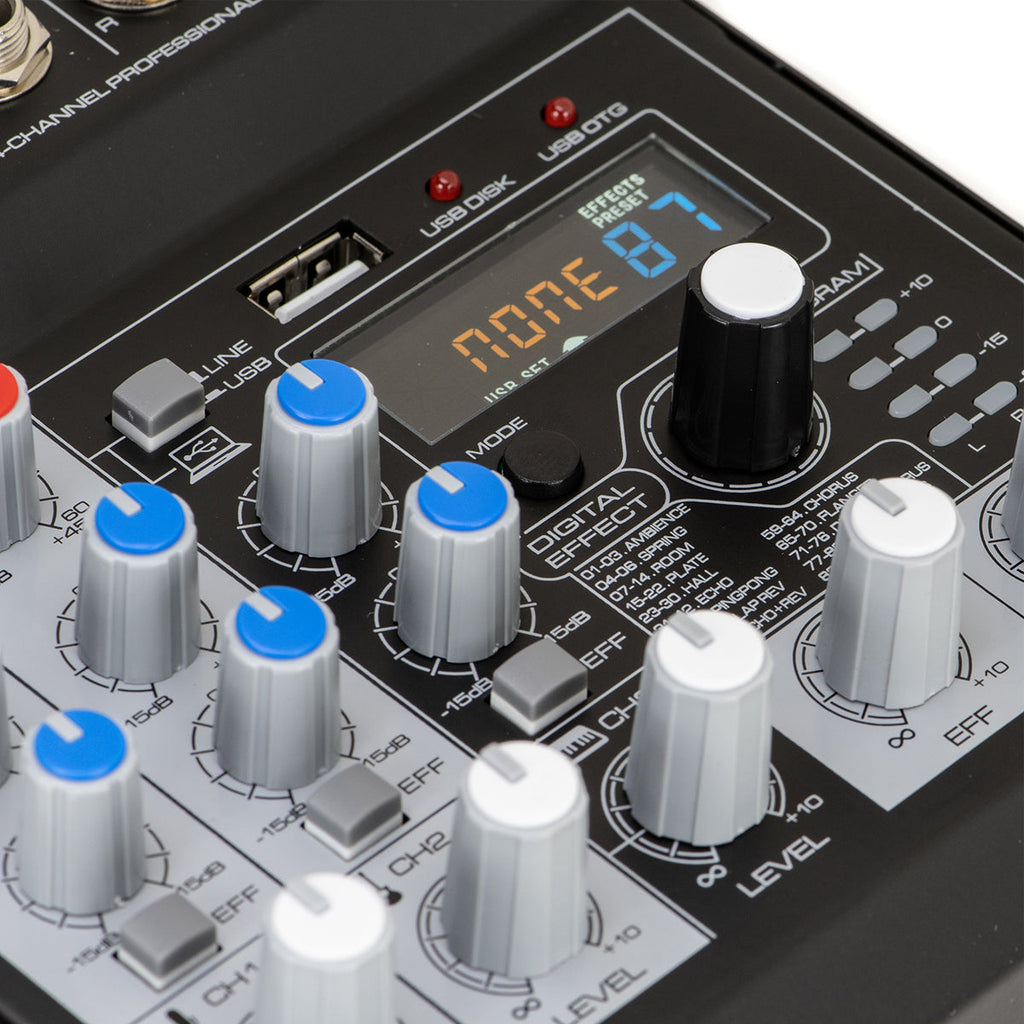

· Built-in effects processor provides 88 presets for chorus, delay, reverb and more

Inputs: 2 XLR mic/line combo, 2 mono/1 stereo line, 1 USB
Outputs: ¼” TRS, balanced
Mic E.I.N (20Hz – 20kHz): -129.5dBu @ 150 Ω source resistance
Distortion (THD): 0.005%
Stereo out (fader at 0 dB): -88 dBu
Stereo out (fader at ∞): -100 dBu
Headphone out (fader at ∞): -88 dBu
Signal to noise ratio:
Mic input: 81dB
Line input: 78dB
Attenuation (Crosstalk): Channel gain @ 0: -82 dBu
Weight: 1.95Lb (0.88kg)
Dims: 9.7”x8.7”x2.6” (24.6*22.1*6.6cm)


About CAD

CAD Audio continues to build upon over 85 years of innovation and success in the audio industry delivering innovative and highly useful solutions for performers, engineers and a wide range of audio professionals.
