The Kam KXR5000 is a professional grade 500 Watt Stereo Power Amplifier that's 2U rack mountable with low noise, making it ideal for of a vast range of sound reinforcement environments, from live-sound, studio to commercial installations.

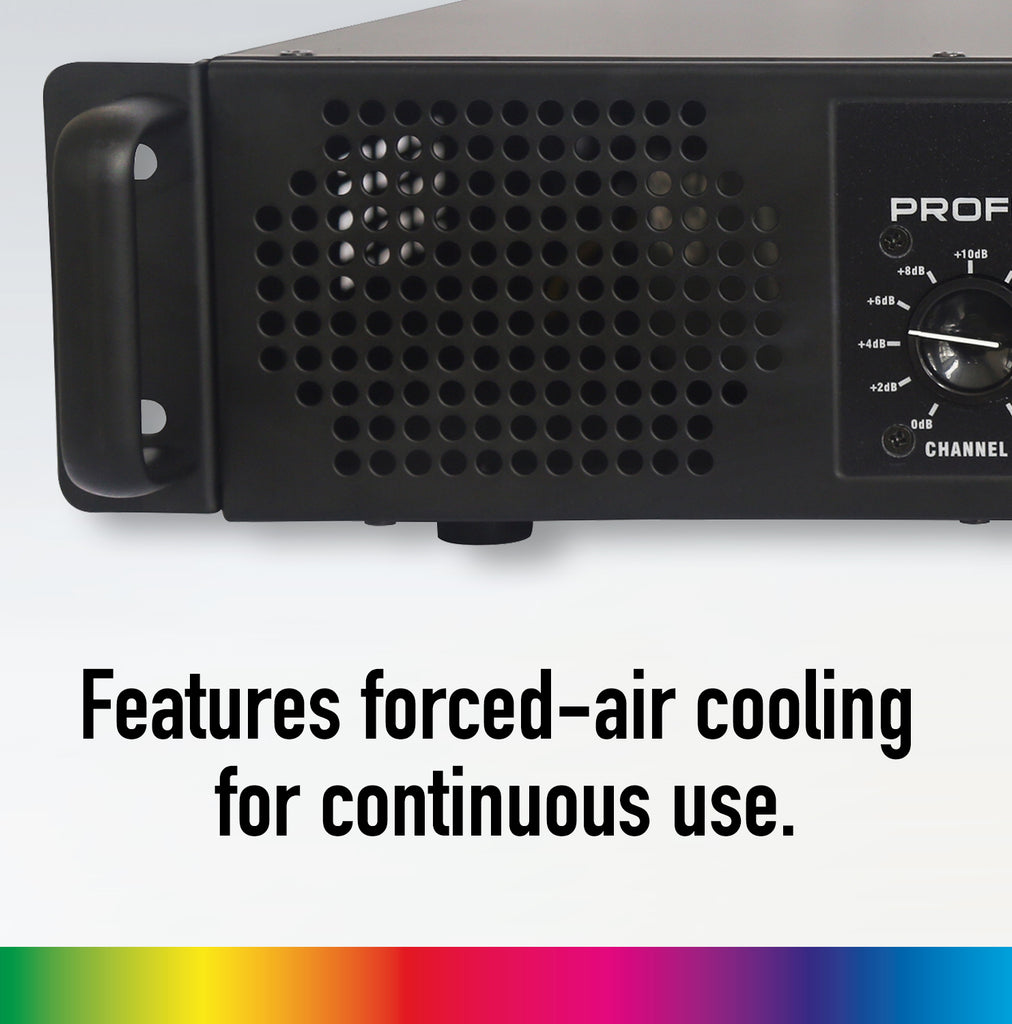

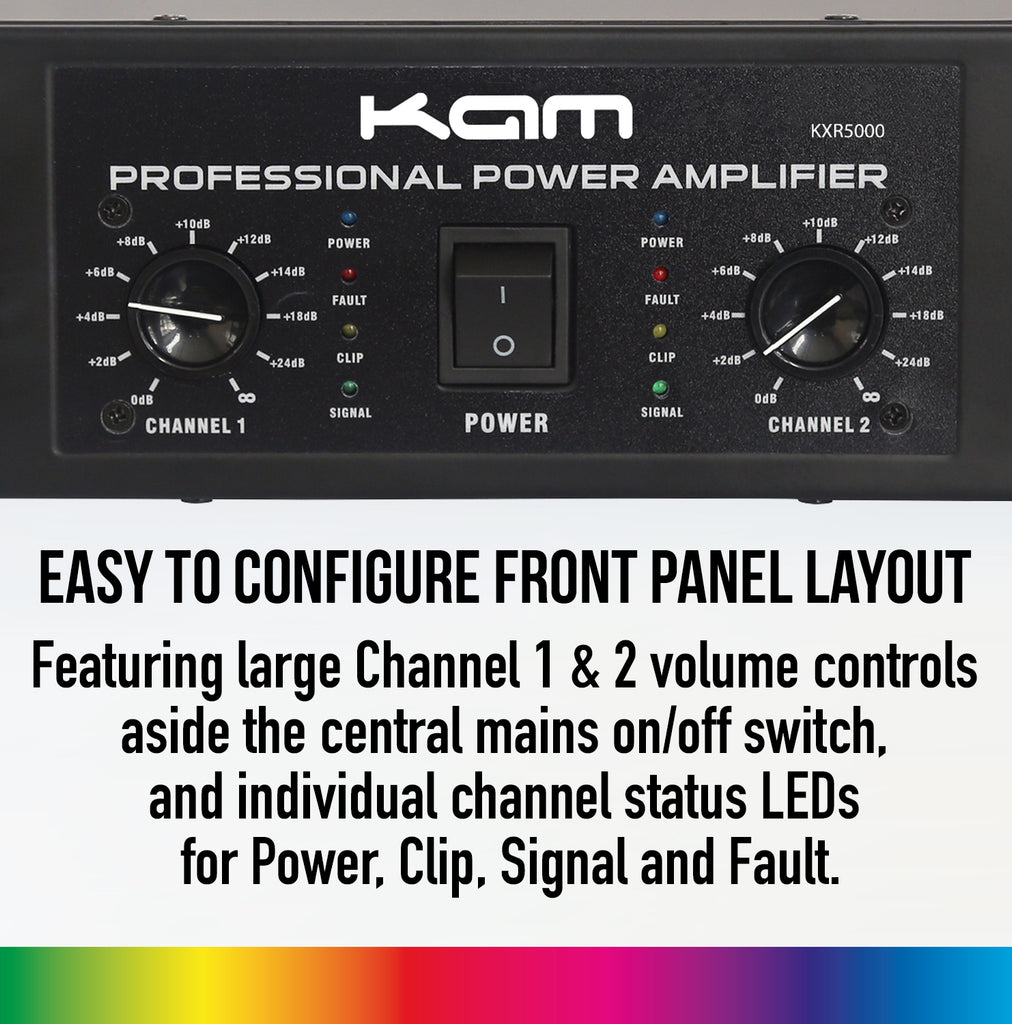

Presented in a 2 channel stereo or bridged output modes, this superb workhorse power amplifier, features forced-air cooling for continuous use, and whilst beautifully designed and engineered on the inside, all effort has been made for ease of use with an easy to configure front panel layout, featuring large Channel 1 and 2 volume controls aside the central mains on/off switch, and individual channel status LEDs for Power, Clip, Signal and Fault.
With 2 x XLR and 2 x ¼" jack inputs and outputs via 2 x SpeakON connectors, 2 pairs of 'banana' binding posts and separate ‘bridge’ binding post, the KXR5000 power amp offers superb flexible connectivity. There are also rear panel switches for Stereo/Bridge and Ground Lift, while internal circuits protect against Thermal, Short Circuit and Overload.
The operation voltage can also be changed from 240v to 110v for use around the world, and whilst delivering faultless, high quality audio with superb clarity and headroom with impressive signal/noise ratios, it’s easy to see why the Kam KXR Series, professional grade stereo power amplifiers, already have a track record for exceptional performance and reliability.
Features• Rack Size: 2U
• Output Power Stereo 8 Ohms: 180W
• Output Power Stereo 4 Ohms: 256W
• Bridge 8 Ohms: 508W
• Frequency Response: 20Hz - 20Hz
• Input Sensitivity: AC1V
• Maximum Input level: 5.5V
• Input Impedance Active Balanced: 20Kohms
• Signal/Noise Ratio: 98dB

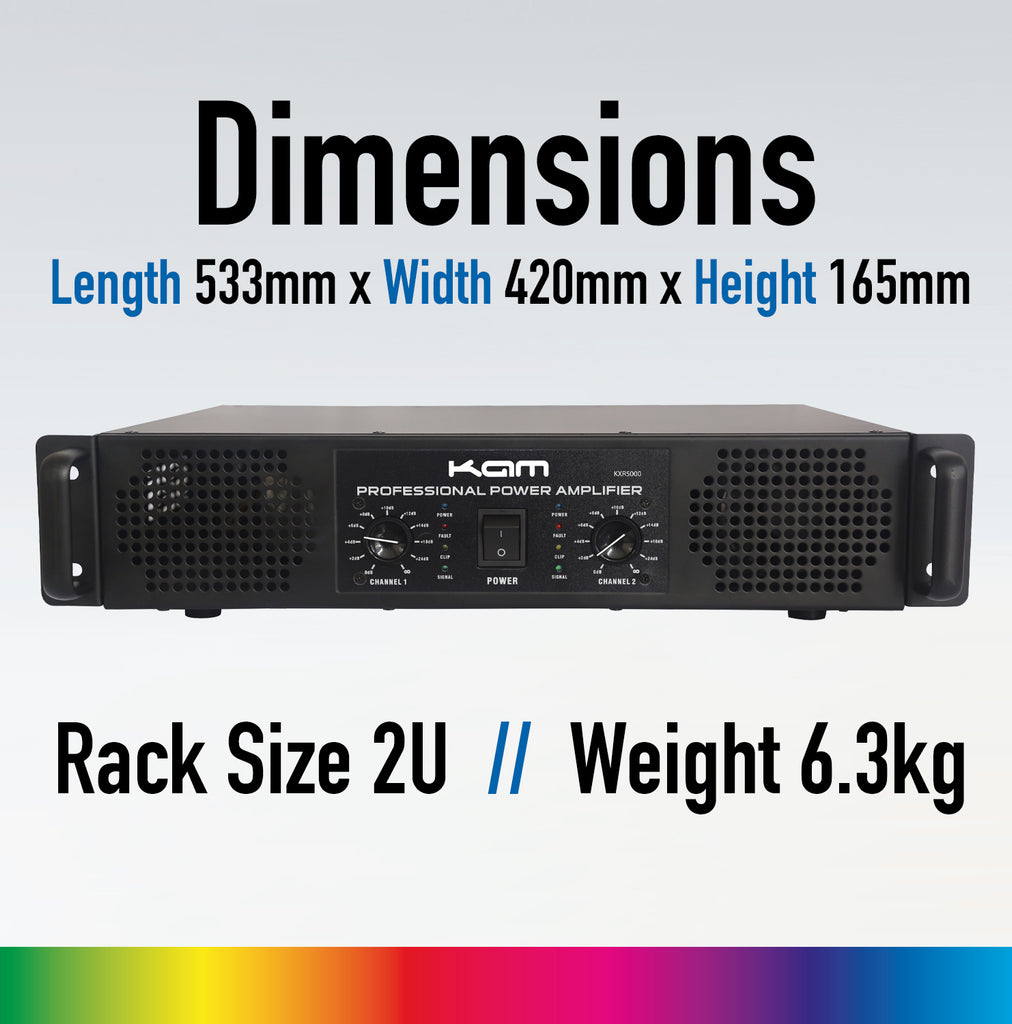

• Dimensions: (L x W x H): ( 533 x 420 x 165)
• Weight: 6.3kg
Downloads
